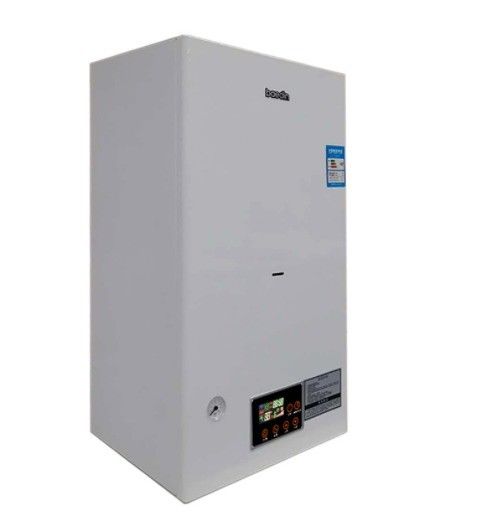

Customizable Metal Shell Gas Water Heater with Adjustable Thermostat Function
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | BAIDIAN |
| Certification: | CE Certificated Parts |
| Model Number: | BA--18 |
Payment & Shipping Terms:
| Price: | $360.00/pieces 1-99 pieces |
|---|---|
| Packaging Details: | Carton packaging |
| Supply Ability: | 5000 Piece/Pieces per Month |
|
Detail Information |
|||
| After-sales Service Provided: | Free Spare Parts | Warranty: | 3 Years |
|---|---|---|---|
| Application: | Outdoor, Hotel, Commercial, Household | Power Source: | Gas |
| App-Controlled: | NO | Private Mold: | Yes |
| Gas Heater Type: | Gas Heating | Installation: | Wall Mounted |
| Use: | Bathroom, Bedroom, Living Room | Function: | Adjustable Thermostat |
| Gas Type: | Natual Gas | Color: | White |
| Weight: | 35kg | Product Size: | 330*400*740 |
| MOQ: | 1 Set | Safety Device: | Flame-failure |
| Key Words: | Wall Mounted Gas Boiler | Material: | Metal Shell |
| Gas Consumption: | 0.13m3/h | Port: | TIANJIN QINGDAO |
Product Description
Product Description
Specification
Product name | Gas Boiler | ||||||||||||||||
Model No | L1P20 | L1P24 | L1P26 | L1P28 | L1P32 | L1P36 | L1P40 | ||||||||||
Gas type | LPG, NG | ||||||||||||||||
Rate gas pressure（Pa） | 2000（NG） 2800（LPG） | ||||||||||||||||
Rated Heat Input（kW） | 20 | 24 | 26 | 28 | 32 | 36 | 40 | ||||||||||
Rated Heat Output（kW） | 18 | 21.6 | 23.1 | 25.2 | 28.8 | 32.4 | 36 | ||||||||||
Min. Heat Input（kW） | 8 | 9.6 | 10.4 | 11.2 | 12.8 | 14.4 | 16 | ||||||||||
Min. Heat Output（kW） | 6.8 | 8.6 | 9.3 | 10 | 11.5 | 13 | 14.4 | ||||||||||
Heating system | Max heating water temperature（℃） | 85 | |||||||||||||||
Heating water temperature range（℃） | radiator：30～80 underfloor heating：35～60 | ||||||||||||||||
Heating water pressure(MPa) | 0.07~0.25 | ||||||||||||||||
Heating system structure | Enclosed | ||||||||||||||||
Expansion tank（L） | 6 | 8 | |||||||||||||||
Expansion tank pressure (MPa) | 0.1 | ||||||||||||||||
Heating area（m2） | 60～120 | 70～150 | 70～180 | 80～200 | 100~230 | 120~250 | 140~280 | ||||||||||
Hot water rated（kg/min） △t=30℃ | 8.3 | 10 | 10.8 | 11.6 | 13.3 | 15 | 16.6 | ||||||||||
Heating water temperaturerange (℃) | 35～60 | ||||||||||||||||
Max water flow（MPa） | 0.03～0.8 | ||||||||||||||||
Exhaust way | JSG | ||||||||||||||||
Ignition way | Automatic impulse ignition | ||||||||||||||||
Water temperature control | Automatic adjust by gas valve | ||||||||||||||||
Water temperature display | LED screen | ||||||||||||||||
Voltage/Frequency（V、Hz） | AC 220V/50Hz | ||||||||||||||||
Max electric power（W） | 105 | 120 | 135 | 165 | |||||||||||||
Standby power（W） | 2 | ||||||||||||||||
Fuse（A） | 2.5 | ||||||||||||||||
Insulation Type | I type | ||||||||||||||||
Electricity And Water Protection Grade | IP×4 | ||||||||||||||||
Size: length×wide×height（mm） | 710*400*297 | 710*400*320 | |||||||||||||||
Pipe connection | Gas Input | G3/4″ | |||||||||||||||
Heating water | G3/4″ | ||||||||||||||||
Shower water | G1/2″ | ||||||||||||||||

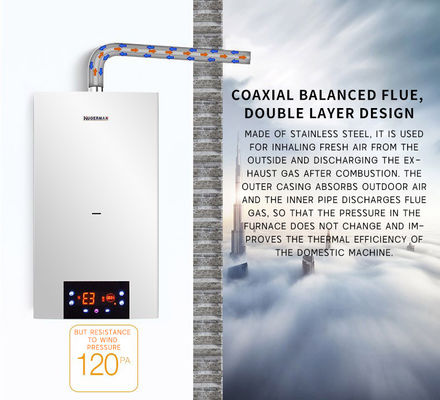

flue tube（mm） | φ100/φ60 (Max 3m) | ||||||||||||||||
Energy Efficiency Grade | level two | ||||||||||||||||
