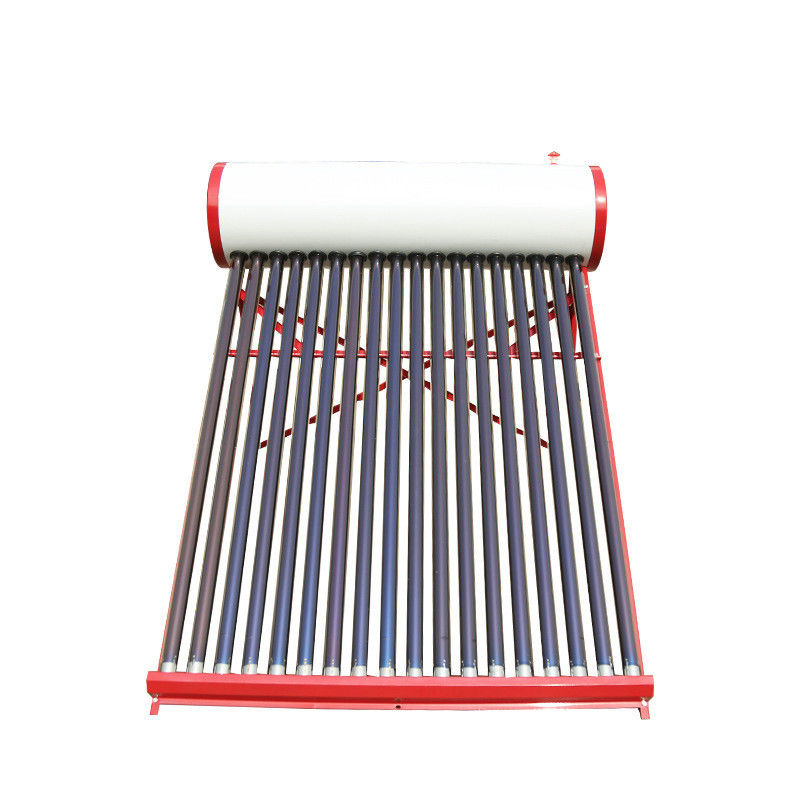

Private Mold 100L 200L 300L Non-pressurized Solar Water Heater for Home or Commercial
Product Details:
| Place of Origin: | China |
| Brand Name: | BAIDIAN |
| Model Number: | BD-18 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $240.00/pieces 2-49 pieces |
| Packaging Details: | Paper packaging |
|
Detail Information |
|||
| After-sales Service Provided: | Free Spare Parts | Warranty: | 1 Year |
|---|---|---|---|
| Application: | RV, Outdoor, Hotel, Garage, Commercial, Household, Heat Water | Power Source: | Solar |
| App-Controlled: | NO | Private Mold: | NO |
| Type: | Evacuated Tube | Circulation Type: | Direct / Open Loop (Active) |
| Connection Type: | Direct-Plug | Installation: | Freestanding |
| Housing Material: | Stainless Steel | Capacity: | 180 |
| Product Name: | Solar Heater | Collector Type: | Glass Vacuum Tube |
| Use: | Solar Hot Water Heating System | Back Plate: | Color Galvanized Plate |
| Tube: | High-borocilicate 3.3 Glass Tube | Working Pressure: | 0-1.0Mpa |
| Name: | Energy Saving Solar Heaters | Frame: | Alumimum Alloy |
| Tube Quantity: | 8/9/10/12/14/15/16/18/20/21/22/24 | ||
Product Description
Product Description
Specification
name | Integrated and pressure solar water heater |
model | 6 tubes- 36 tubes |
inner tank | Sus304-2B, thickness 1.2mm/ sus316 1.2mm |
out tank | zinc steel plate 0.4mm/ stainless steel 0.4mm |
Bracket | Zinc steel plate 1.5mm/ stainless steel 1.2mm |
insulation | High density polyurethane foam 50mm/55mm/60mm |
frame degree | 0 degree-45 degree. Dual-purpose frame for both flat and inclined roof |
inner tank size | Inner tank diameter with 370mm |
out tank size | Outer tank diameter with 470mm |
vacuum tubes | Tri- element tubes 58*1800/47*1500 |
capacity | 60L-300L |
holding time | 72Hours |
Hail resistance | 25mm |
Max. Fluid pressure (Pa) | 0.6mpa |
Operating fluid pressure (Pa) | 0.6mpa |
Test pressure | 1.0mpa |
Heat pipe | 90mm length condenser, 14mm diameter body, thickness:0.6mm |
Dust Proof Rubber | EPDM |
