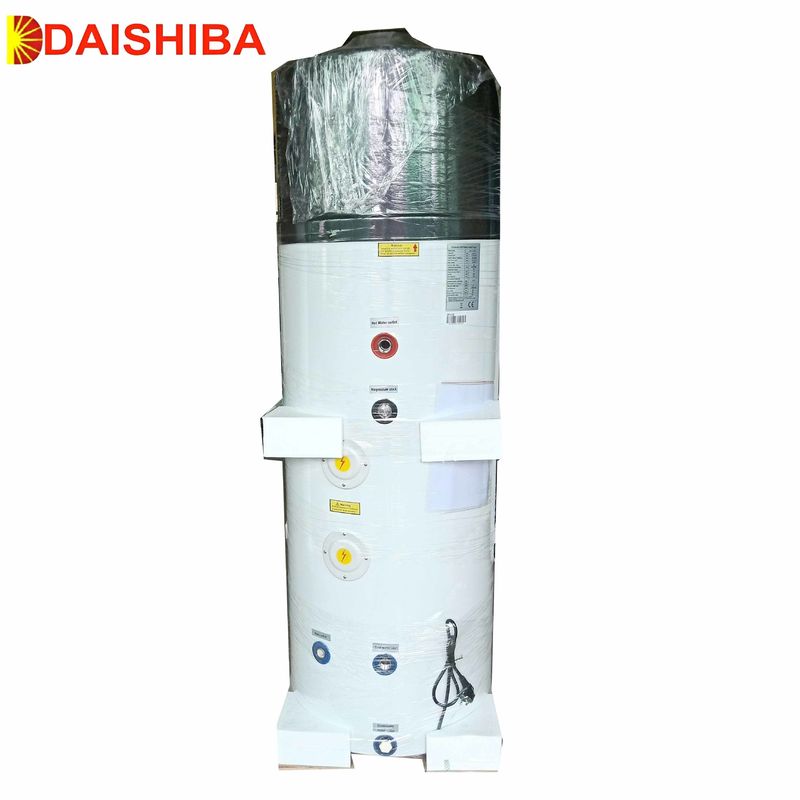

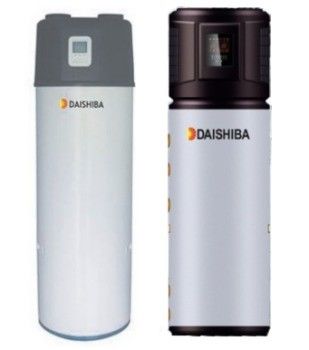

All-in-One Domestic Heat Pump 75% Air Source 25% Electricity 3 Kw for Hot Water Needs
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | DAISHIBA |
| Model Number: | DHW-28-150L/DHW-20a-150L |
Payment & Shipping Terms:
| Price: | $880.00/pieces 1-49 pieces |
|---|---|
| Packaging Details: | Paper packaging |
| Supply Ability: | 500 Piece/Pieces per Day |
|
Detail Information |
|||
| After-sales Service Provided: | Free Spare Parts | Warranty: | 2 Years |
|---|---|---|---|
| Application: | Outdoor, Household | Power Source: | Electric, Manual |
| App-Controlled: | NO | Private Mold: | NO |
| Type: | Air Source Heat Pump, Air Source Inverter Heat Pump | Installation: | Wall Mounted |
| Storage / Tankless: | Storage | Housing Material: | Stainless Steel |
| Use: | Bathroom, Jacuuzi | Function: | Hot Water *Space Heating*Space Cooling |
| Refrigerant: | R410A | Heat Exchanger: | Tube-in-shell Heat Exchanger |
| Heating Capacity: | 3 Kw | Compressor: | DC Inverter Compressor |
| Name: | Swimming Pool Air Source Heat Pump | Power Supply: | 220~240V/1Ph/50~60Hz |
| Heat Source: | 75% Air Source+25% Electricity | Port: | QINGDAO TIANJIN |
Product Description
Product Description
Specification
odel | Unit | DHW-20a-150L | DHW-20a-200L | DHW-20a-250L | DHW-20a-300L | DHW-28-150L | DHW-28-200L | DHW-28-250L | DHW-28-300L | ||||||||
Heating capacity | kW | 2.0 | 2.0 | 2.0 | 2.0 | 2.8 | 2.8 | 2.8 | 2.8 | ||||||||
COP | W/W | 3.9 | 3.9 | 3.9 | 3.9 | 4 | 4 | 4 | 4 | ||||||||
Water tank volume | L | 150 | 200 | 250 | 300 | 150 | 200 | 250 | 300 | ||||||||
Rated heated Water outlet | L/h | 42 | 60 | ||||||||||||||
Rated houtlet water temp. | ℃ | 55 | |||||||||||||||
Max outlet water temp | ℃ | 60 | |||||||||||||||
Rated power input | W | 510 | 700 | ||||||||||||||
Rated current | A | 2.4 | 3.3 | ||||||||||||||
Electric heater power | W | 2000 | 2800 | ||||||||||||||
Electric heater current | A | 9.6 | |||||||||||||||
Power supply | V/Hz/Ph | 220-240V/50Hz/1Ph | |||||||||||||||
Compressor type | / | Rotary | |||||||||||||||
Number of Compressor | / | 1 | |||||||||||||||
Heat exchanger type | / | External coil | |||||||||||||||
Throttling device | / | Electrical expansion valve | |||||||||||||||
Fan type | / | High efficiency and low noise centrifugal fan | |||||||||||||||
Fan discharge | / | Top with 5m exhaust pipe | |||||||||||||||
Fan quantity | / | 1 | |||||||||||||||
Fan input | W | 200 | |||||||||||||||
Fan speed | RPM | 920 | |||||||||||||||
Ambient temperature | ℃ | 0℃~43℃ | |||||||||||||||
Refrigerant | / | R134a/R410A | |||||||||||||||
Noise in 1 metre distance | dB | 43dB(A) | |||||||||||||||
Water pipe conneciton size | mm | G3/4'' | |||||||||||||||
Cabinet | / | Galvanized powder coated steel | |||||||||||||||
Low pressure protection system | / | Yes | |||||||||||||||
High pressure protection system | / | Yes | |||||||||||||||
Automatic defrosting system | / | Yes | |||||||||||||||
Product Net weight | kg | 78 | 84 | 90 | 100 | 81 | 87 | 93 | 103 | ||||||||
Product dimensions | mm | Φ560*1500 | Φ560*1700 | Φ560*1970 | Φ650*1800 | Φ560*1500 | Φ560*1700 | Φ560*1970 | Φ650*1800 | ||||||||
Testing condition | Ambient temp.(DB/WB)=20℃/ 15℃, water temp. Input/output=15℃/55℃ | ||||||||||||||||
